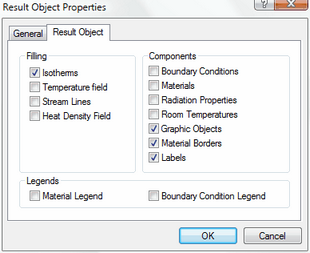

Isotherms

This option allows you to display the isotherms for the result object.

Temperature Field

This option allows you to display the temperature field for the result object.

Only one of the following settings can be selected: heat density, temperature, or material.

,
Stream Lines

This option allows you to display the stream lines for the result object.

Heat Flux Field

This option allows you to display the heat flux field for the result object.

Only one of the following settings can be selected: heat flux, temperature, or materials.

Boundary Condition

This option allows you to display the selected boundary condition for the result object.

Materials

This option allows you to display the selected material for this result object.

Only one of the following settings can be selected: heat density, temperature, or materials.

,
Radiation Properties

This option allows you to display the radiation properties of cavity surfaces. Radiation properties are only displayed if they are calculated automatically by flixo (cf. options Cavities).

Room Temperatures

This option allows you to display the room temperatures in the result object. The colors of the temperatures correspond to those of the temperature landscapes.

Graphic Objects

This option allows you to display graphic objects that facilitate the interpretation of the illustration, but that are not taken into account in the calculation.

Material Borders

This option allows you to display the material borders in the result object.

Labels

This option allows you to display point labels for the results of the result object.

Material Legend

This option allows you to display a material legend for the result object.

Boundary Condition Legend

This option allows you to display a boundary condition legend for the result object.
